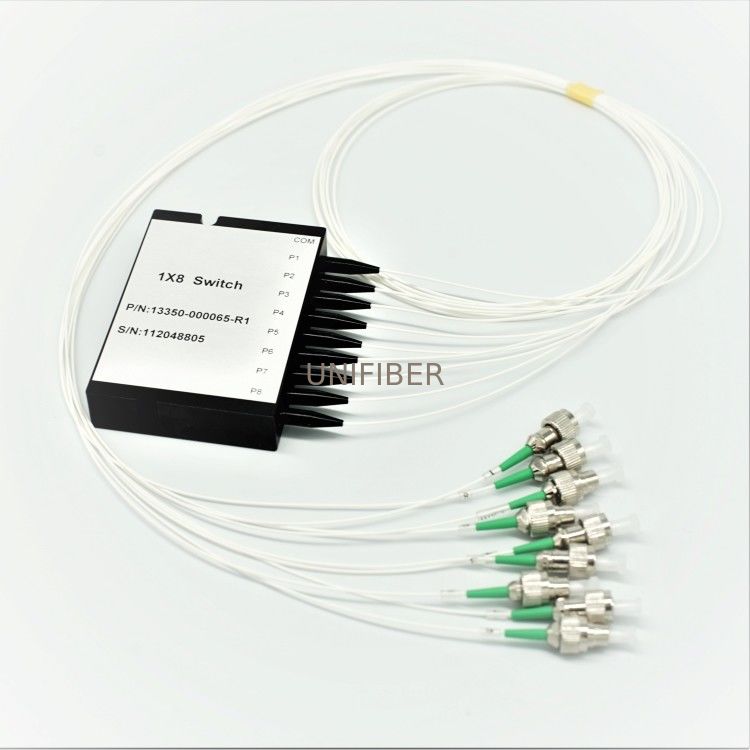

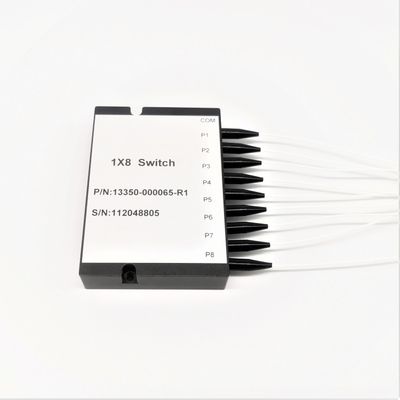

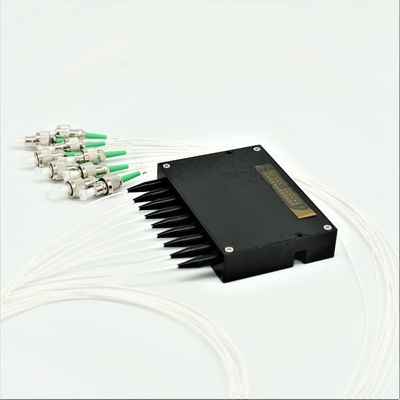

1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW

1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW
1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW 1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW 1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW

Large Image :  1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: 1x8 Mechanical Optical Switch
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: 1310nm 1550nm 1x8 Mechanical Optical Switch Latching Or No Latching Wavelength: 1310nm Or 1550nm
Switch Type: Latching Or No Latching Fiber Type: Corning SMF 28e+
Package: ABS Module Application: Network Route Protection
High Light:

ABS 1x8 Mechanical Optical Switch

,

1550nm Mechanical Optical Switch

,

500mW Non Latching Optical Switch

1xN Mechanical Fiber Optic Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. The mechanical operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MMS fiberoptic switches are true switching solutions for optical networking applications.



Key Features
♦ Fast Switching Speed

♦ Low Insertion Loss
♦ Wide Wavelength Range
♦ Low Optical Return Loss
♦ Low Cross Talk

Applications

♦ Configurable Add/Drop
♦ Network Route Protection
♦ R&D Laboratory



Parameters
Units
Performance Specifications
Wavelength range
nm
1310+/-40 1550+/-40
Switching Time
ms
≤ 7.5
Insertion Loss (@ 25 °C)
dB
≤ 1.2
Cross Talk
dB
≥ 55
Polarization Dependent Loss
dB
≤ 0.1
Optical Return Loss
dB
≥ 50
Input Optic Power
mW
500
Life Cycles
-
107
Fiber Type
-
Corning SMF 28e+
Connector Type
-
FC, SC, LC (customer optional)
Switch Type
-
Latching or No Latching (optional)
Switching Voltage
V
4.5-5.5
Switching Current
mA
120
Dimension
mm
1x4: 55x48x15 1x8: 56x80x15
