Product Details:
Payment & Shipping Terms:
|
| Product: | 2x2B Mechanical Fiber Optical Switch | Fiber Mode: | Single Mode |
|---|---|---|---|
| Voltage: | 3V/5V | Control Model: | Non-Latching |
| Fiber Type: | 900um Loose Tube | Connector: | LC/UPC |
| High Light: | 900um Mechanical Fiber Optical Switch,LC UPC Mechanical Fiber Optical Switch,2x2 Bypass Fiber Ethernet Switch |
||

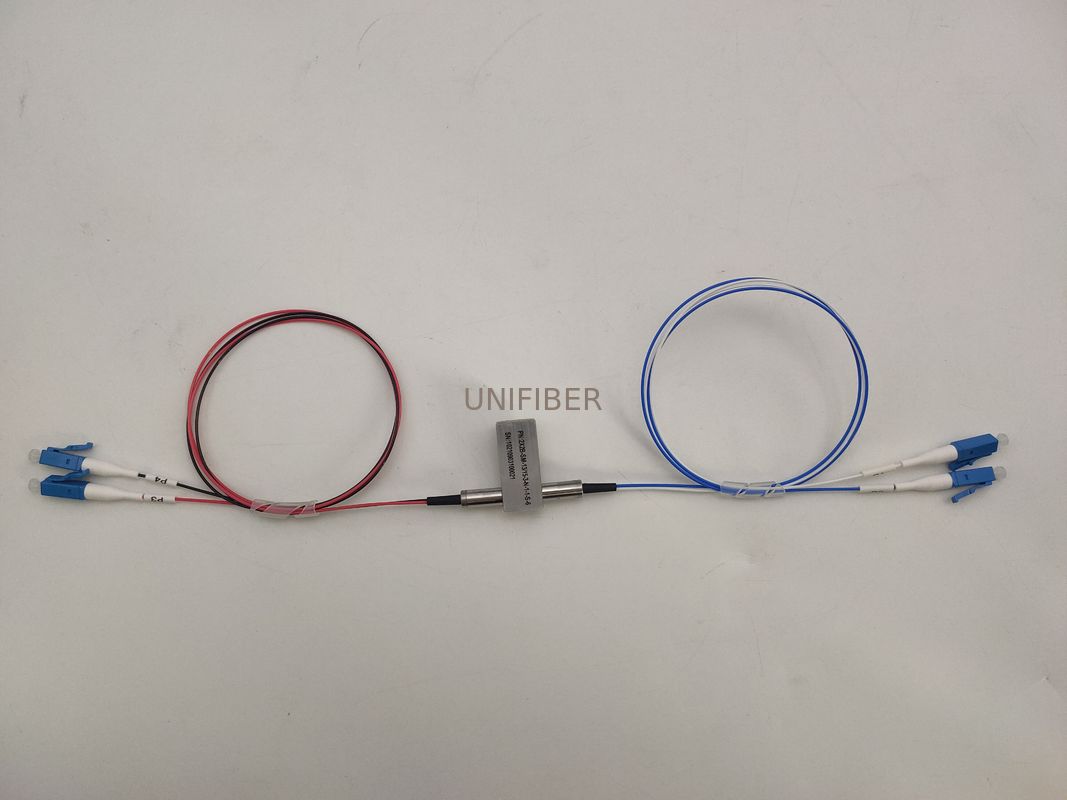

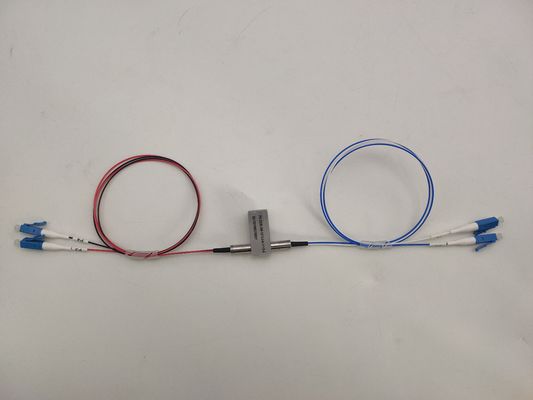

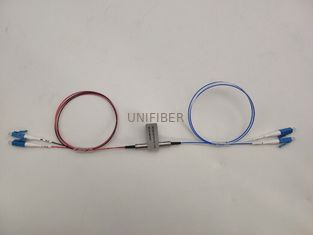

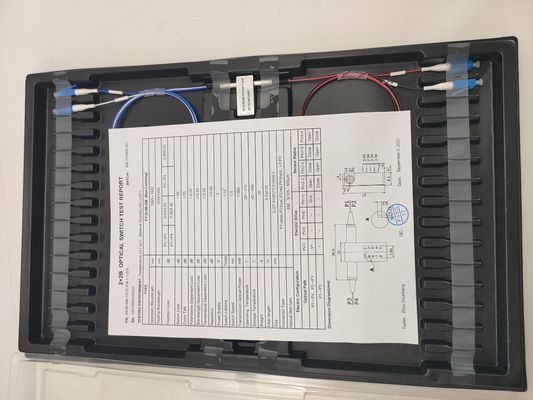

2x2B Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2B Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
2x2B Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and It provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.
| Features | Applications |
| Unmatched Low Cost | Optical Network |
| Low Insertion loss | Protection/Restoration |
| High Channel Isolation | Optical Singnal Routing |
| High Stability, High Reliability | Configurable Optical Add/Drop |
| Epoxy-free on Optical Path | Transmitter and receiver protection |
| Latching and Non-latching | Network Test System |
Mechanical Dimensions
Performance Specifications
| Parameter | 2×2B-MM/SM | |
| Wavelength Range(nm) | 850±40 | 1260~1650 |
| Operating Wavelength | 850 | 1310/1490/1550/1625/1650 |
| Insertion Loss(dB) | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss(dB) | MM≥30?SM≥50 | |
| Crosstalk(dB) | MM≥45?SM≥55 | |
| Polarization Dependent Loss(dB) | ≤0.05 | |
| WaveLength Dependent Loss(dB) | ≤0.25 | |
| Temperature Dependent Loss(dB) | ≤0.25 | |
| Repeatability(dB) | ≤±0.02 | |
| Power Supply(V) | 3.0 or 5.0 | |
| Lifetime(time) | ≥10^7 | |
| Switch Time(ms) | ≤8 | |
| Transmission Power(mW) | ≤500 | |
| Operating Temperature(℃) | -20~+70 | |
| Storage Temperature(℃) | -40~+85 | |
| Weight(g) | 16 | |
| Dimension(mm) | (L)27.0×(W)12.0×(H)8.2 | |
1,Specifications may change without notice.
2,Above specification are for device without connector.
| Type | Pin | Electric Drive | Status Sensor | ||||||
| 2×2B | Optical Path | Pin1 | Pin5 | Pin2×2B | Optical Path | Pin1 | Pin5 | Pin2×2B | Optical Path |
| Latching | P1-P4,P2-P3 | V+ | GND | Latching | P1-P4,P2-P3 | V+ | GND | Latching | P1-P4,P2-P3 |
| P1-P3 | -- | -- | P1-P3 | -- | -- | P1-P3 | |||
| Non-latching | P1-P4,P2-P3 | V+ | -- | -- | GND | Open | Close | Close | Open |
| P1-P3 | -- | -- | -- | -- | Close | Open | Open | Close | |
| Status One | Status Two |
|
|
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 | 36~44mA | 125Ω |
| 5V non-latching | 4.5~5.5 | 26~32mA | 175Ω |
| 3V latching | 2.7~3.3 | 54~66mA | 50Ω |
| 3V non-latching | 2.7~3.3 | 39~47mA | 70Ω |
