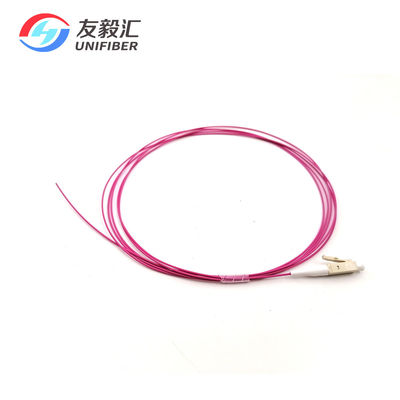

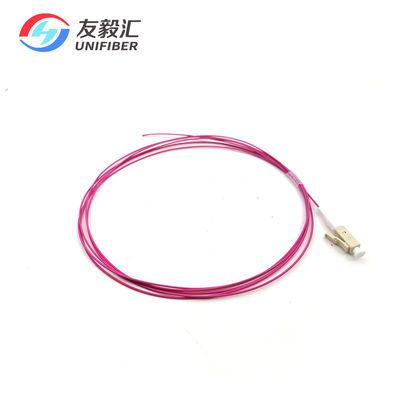

LC UPC 900um Buffer Fiber Optic Pigtail Multimode 50/125um OM4

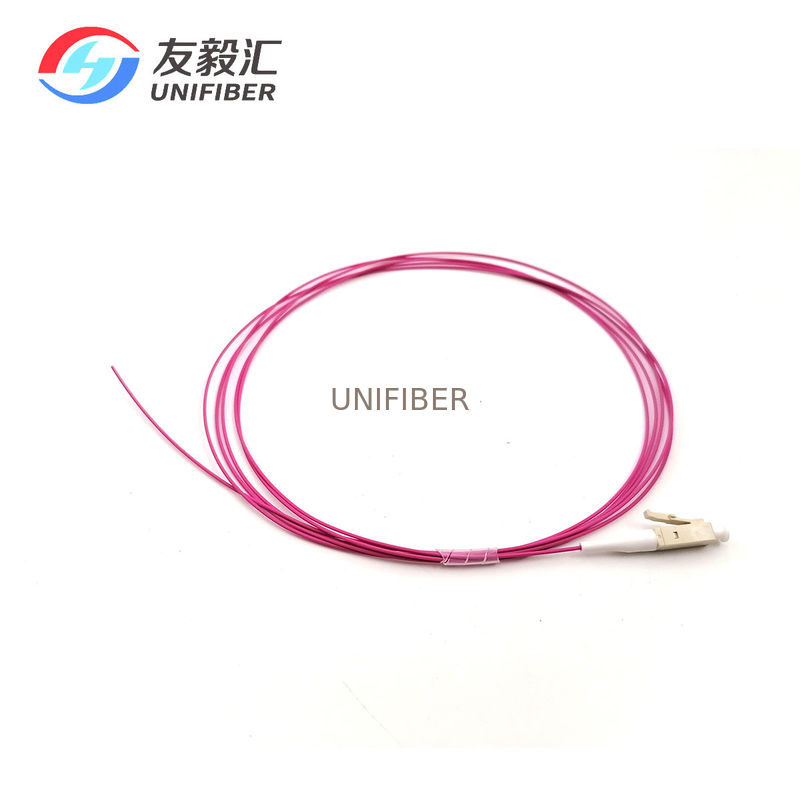

Large Image : LC UPC 900um Buffer Fiber Optic Pigtail Multimode 50/125um OM4

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	LC UPC Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	LC UPC Fiber Optic Pigtail	Connector:	LC UPC
Fiber:	Multimode OM4 50/125um	Cable Diameter:	900um Tight Buffer
Cable Jacket:	OFNR Or LSZH	Length:	1m
High Light:	LC UPC Fiber Optic Pigtail , 900um Buffer Fiber Optic Pigtail , OM4 Multimode Fiber Pigtail

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Features

Zirconia Ceramic Ferrule Optimum IL and RL.

0.9mm cable available for high dengsity splicing applications.

Tight buffer pigtail for ease of splicing.

Two Important Methods for Fiber Optic Pigtail Splicing

Fiber optic pigtail assemblies are utilised in terminating fiber optic cables via fusion or mechanical splicing

Mechanical Splicing

Nechanical splices are alignment fixtures that hold the ends of two fibers together by a self-contained assembly

Fusion Splicing

Fusion splices are made by "welding" the two fibers together usually by an electric arc

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
