Product Details:
Payment & Shipping Terms:
|

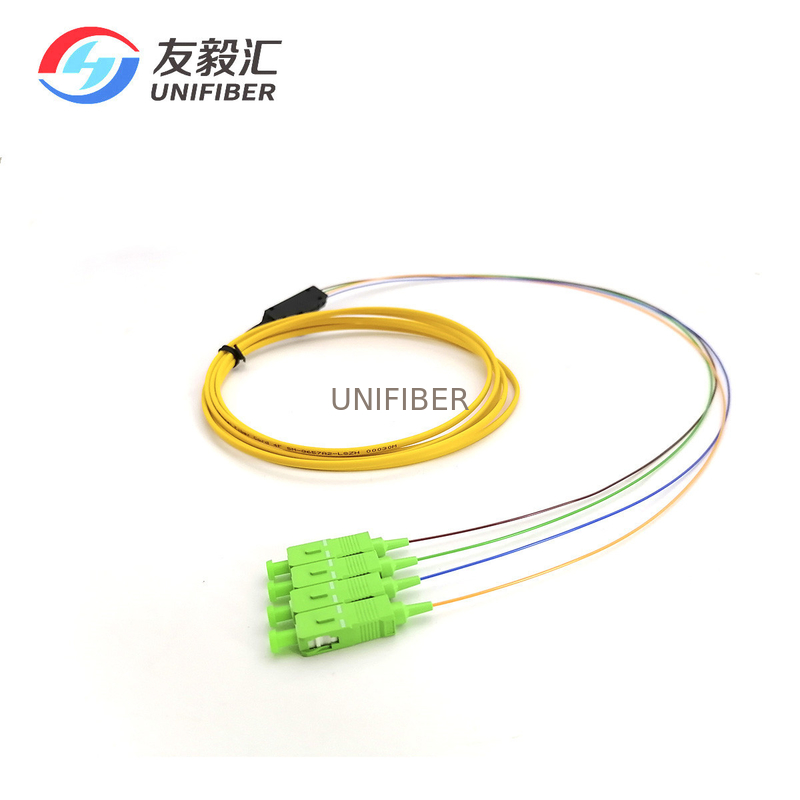

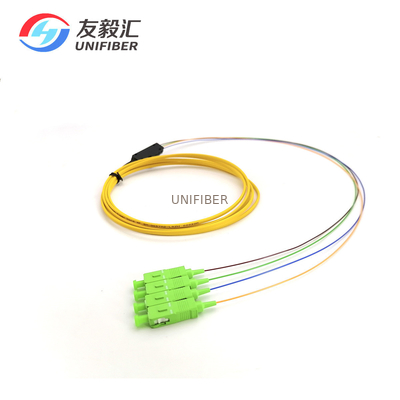

| Product: | SC/APC 4 Core Ribbon Fiber Optic Pigtail | Fiber Counts: | 4 Fiber |
|---|---|---|---|
| Fiber Type: | G657A2 | Cable Type: | Flat Ribbon Fiber Cable |

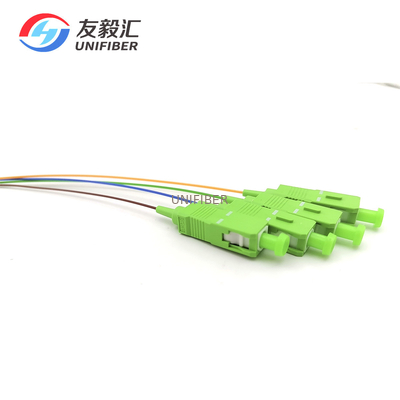

| Connector: | SC/APC | Length: | 1.5m Or Others |
| High Light: | SC APC Fiber Optic Pigtail,4C Ribbon Fiber Optic Pigtail,G657A2 Single Mode Fiber Pigtail |
||

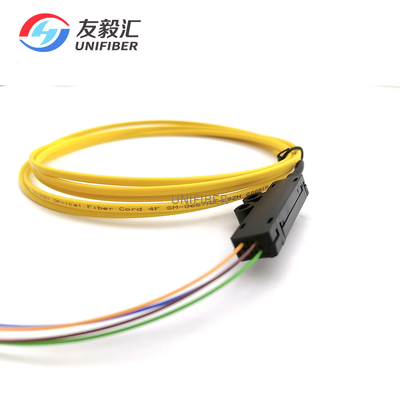

Pigtails are used for splice applications when terminating outside plant cable. Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
Features
Low insertion loss, High reflection loss
Flexible and easy to strip fiber buffering
Identifiable fiber buffer colors under all lighting conditions
Reduces installation time
Avoids incorrect patching by possible fiber flipping
Clean and Scratch-Free End Face
Proportional geometric test is applied to the normal production.
Specification
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
