Home Products Fiber Optical Switch

Mini Tap PD Fiber Optical Switch 250um Bare C/L Band WDM Channel Monitoring

All Products

Fiber Optical Patch Cord (286)

MPO MTP Patch Cord (86)

Fiber Cable Assembly (170)

Fiber Optic Splitter (120)

Wavelength Division Multiplexer (127)

Fiber Optic Transceiver (102)

Fiber Optic Patch Panel (173)

Fiber Optic Termination Box (215)

Pre Terminated Multi Fiber Cables (56)

Fiber Optic Pigtail (76)

Fiber Optic Connectors (80)

Fiber Optic Adapter (95)

Fiber Optic Attenuator (44)

Bulk Fiber Optic Cable (103)

Fiber Optic Splice Closure (95)

Fiber Optic Cabinet (26)

Fiber Optical Switch (31)

Fiber Optical Circulator (14)

Fiber Optical Isolator (27)

China Shenzhen Unifiber Technology Co.,Ltd certification

I'm Online Chat Now

Mini Tap PD Fiber Optical Switch 250um Bare C/L Band WDM Channel Monitoring

Large Image : Mini Tap PD Fiber Optical Switch 250um Bare C/L Band WDM Channel Monitoring

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER or OEM
Certification:	ROHS
Model Number:	Tap-PD Monitor

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Blister case
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	C/L Band Mini Tap-PD Monitor	Tap Ratio:	1%,2%,5%
Connector:	LC/Sc/FC/St	Pigtail:	250um Bare Fiber Or 900um Tight Buffer
Application:	Switch/Protection	Name:	Fiber Optical Switch
High Light:	Tap PD Fiber Optical Switch , 250um Bare Fiber Optical Switch , WDM Channel Gigabit Fiber Switch

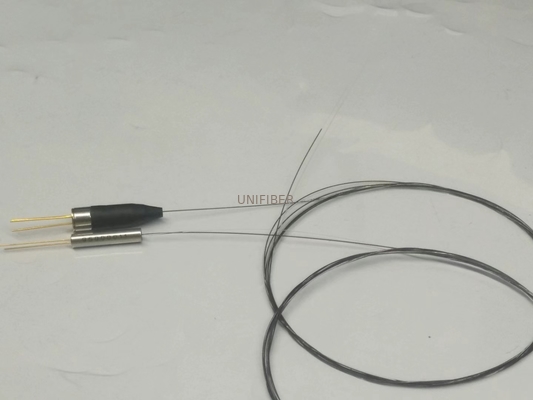

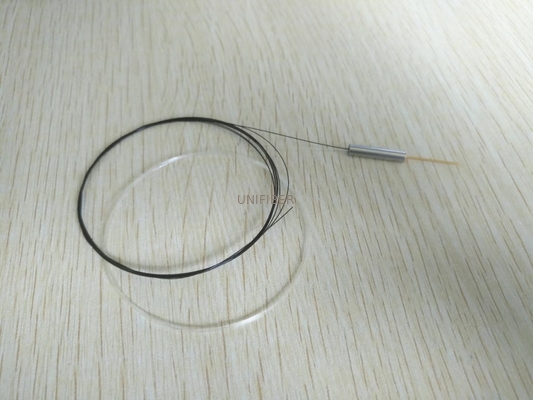

The tap PD released by Unifiber is a device that uses the photoelectric effect to monitor light intensity. When light is input to the detector, a current of corresponding intensity is drawn from the product PIN pin. The Tap PD integrates a spectroscopic coupler and a photodiode.

Features

- Low Insertion Loss & high isolation

- Customized tap ratio available

- Integrated devices, compact size

- Telcordia compliant

- RoHS compliant

Applications

- WDM channel monitoring

- Gain monitoring for amplifiers

- Optical network switch/protection

- monitoring

Specifications

Parameter		Specification			Unit
Operating Wavelength		C/L band
Tap Ratio		1%	2%	5%
Maximum Input Power		25	22	18	dBm
Responsivity		7~15	14~26	40~60	mA/W
Insertion Loss	Max	0.5	0.6	0.7	dB
Wavelength Dependent Loss	Max	0.3	0.3	0.3	dB
Temperature Dependent Loss	Max	0.3	0.3	0.3	dB
Return Loss	Min	45	45	45	dB
Polarization Dependent Loss	Max	0.1	0.1	0.1	dB
Dark Current (at 25°C)	Max	1	1	1	nA
Reverse Voltage	Max	20 (Typ 5)			V
Operating Temperature Range		0~+70			°C
Storage Temperature Range		-40~+85			°C
Package Dimension (L* )		17*3.2			mm

TPD	Standard/Mini Size	Tap Ratio	Fiber Type	Connector Type
	M: Mini size	01: 1%	1: 250μm bare fiber	0: Without connector
		02: 2%	2: 900μm tight buffer fiber	1: FC/PC 2: FC/UPC 3: FC/APC
		05: 5%		4: SC/PC 5: SC/UPC 6: SC/APC
				7: ST 8: LC 9: MU X: Customized
