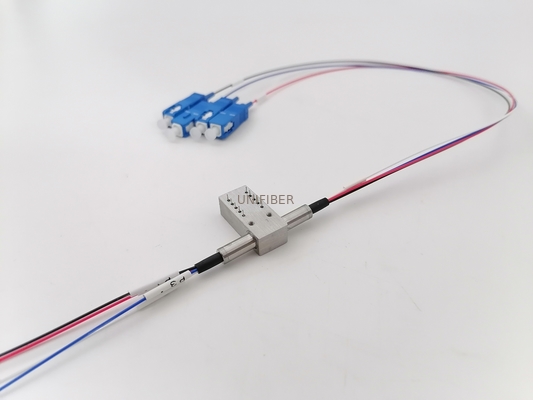

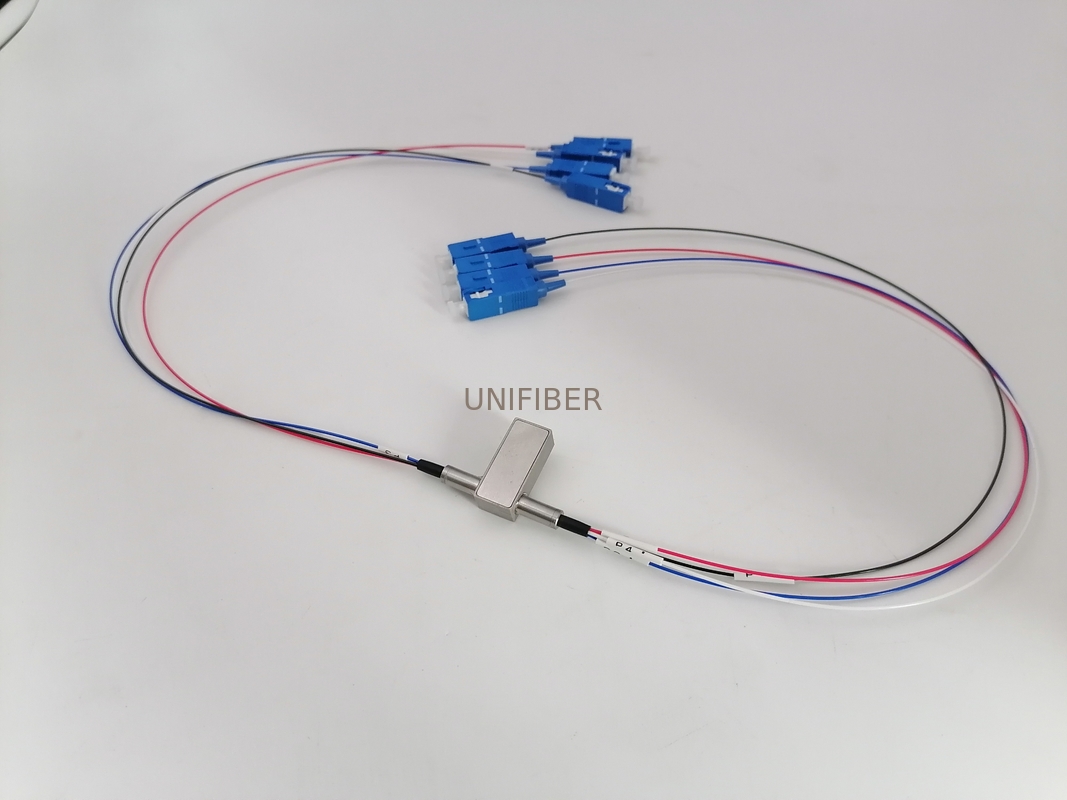

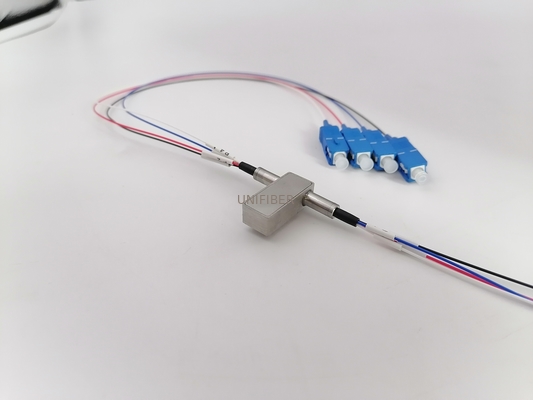

4x4 Bypass Mechanical Fiber Optic Switch MM SM 1310/1550nm

4x4 Bypass Mechanical Fiber Optic Switch MM SM 1310/1550nm
4x4 Bypass Mechanical Fiber Optic Switch MM SM 1310/1550nm 4x4 Bypass Mechanical Fiber Optic Switch MM SM 1310/1550nm 4x4 Bypass Mechanical Fiber Optic Switch MM SM 1310/1550nm

Large Image :  4x4 Bypass Mechanical Fiber Optic Switch MM SM 1310/1550nm

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: 4x4 Bypass Mechanical Fiber optic Switch
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Blister case
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: 4x4 Bypass Mechanical Fiber Optic Switch Operating Wavelength: 1310/1550nm
Voltage: 3V Or 5V Ports: 1x1 1x2 2x2 4x4 Or Others
Switch Type: Non-Latching/Latching Application: Channel Blocking
High Light:

4x4 Fiber Optic Switch

,

Bypass Mechanical Fiber Optic Switch

,

MM SM Fiber Optic Gigabit Switch

The 4X4 fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pen-ding opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.



Applications:
Features:
Channel Blocking
Unmatched Low Cost
Configurable Add/Drop
Low Optical Distortions
System Monitoring
High Isolation
Instrumentation
High Reliability

Epoxy-Free Optical Path





Specification of 4*4 fiber optical switch
Parameters
Specifications
Unit
Operating Wavelength
1260~1620(SM),850(MM)
nm
Insertion Loss
≤1.5
dB
Wavelength Dependent Loss
≤0.40
dB
Polarization Dependent Loss
≤0.05
dB
Temperature Dependent Loss
≤0.20
dB
Return Loss
SM≥50 MM≥30
dB
Cross Talk
SM≥55 MM≥35
dB
Switch Time
≤8
ms
Repeatability
≤±0.02
dB
Operating Voltage
3 or 5
V
Switch Type
Non-Latching/Latching

Operating Temperature
-20~+70
Storage Temperature
-40~+85
Optical Power
≤500
mW
Dimension
52.7.0L×37.2W×10.0H
mm



4x4 Bypass Mechanical Fiber Optic Switch MM SM 1310/1550nm 0
