Product Details:
Payment & Shipping Terms:
|
| Product: | FC/APC Ribbon Fan-out Fiber Optic Pigtail | Fiber Counts: | 4/6/8/12 Strands |
|---|---|---|---|
| Connector: | FC/APC | Fiber Type: | G657A2 |
| Jacket: | LSZH | Length: | 1m Or 1.5m |
| High Light: | FC APC Fiber Optic Pigtail,Ribbon Fanout Fiber Optic Pigtail,G657A2 Single Mode Fiber Pigtail |
||

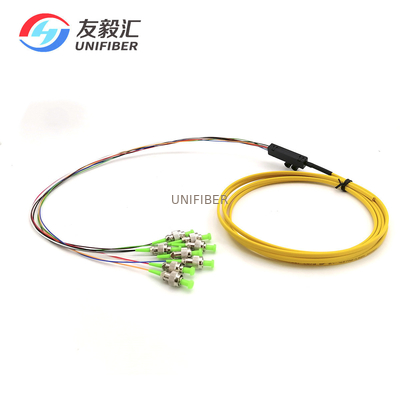

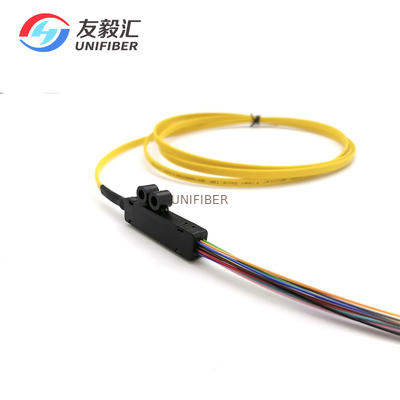

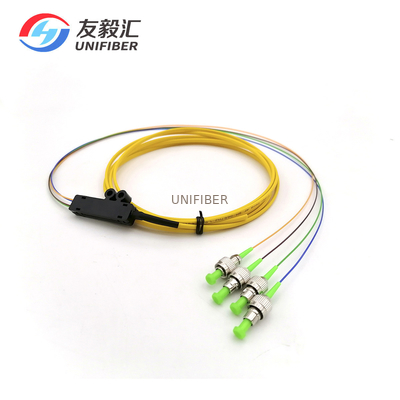

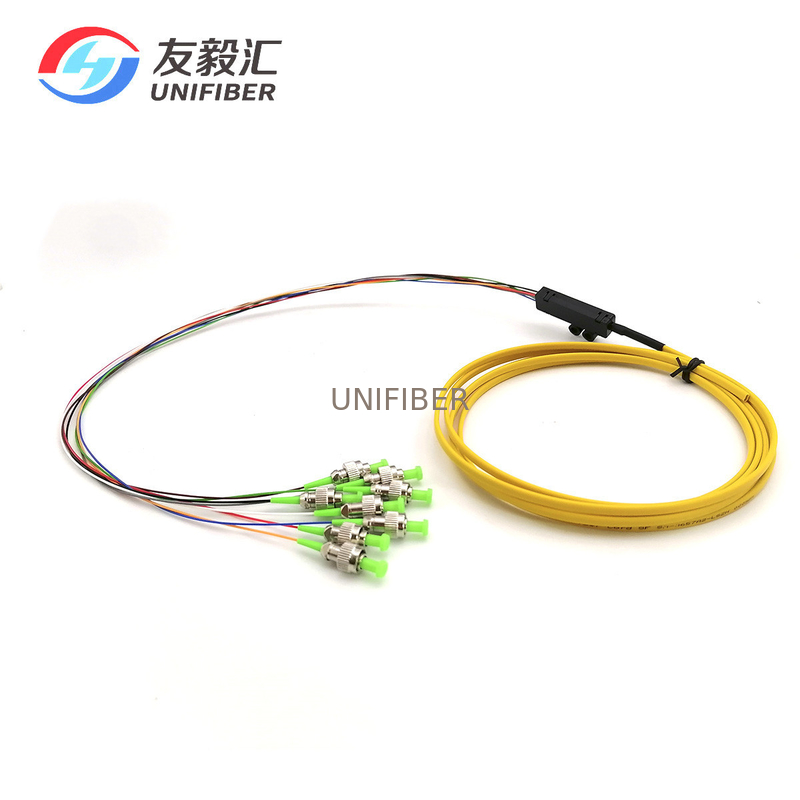

12F Ribbon Fan-out Fiber Optic Pigtail is a multi-fibers pigtail which made by Ribbon cable. The ribbon fiber fanout via a 1x12 fanout kit. The fanout cable can be 900um or 2.0mm cable.Unifiber’s 4/6/8/12 Strands Ribbon Fan-out Fiber Optic Pigtail are available in both single mode and multimode versions with either APC or UPC polish types.
Features:
– Low insertion loss and high return loss;
– Good repeatability & interchangeability;
– PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
– Suitable for high-speed, high-capacity optical fiber transmission system;
– Provide single mode/ multimode patch cord and pigtails;
– Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
– Length/Type: according to customers’ demands.
Specification
| Fiber count | 4/6/8/12 core | Fiber Mode | 9/125μm |
| Connector Type1 | FC/APC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 0.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥60dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
