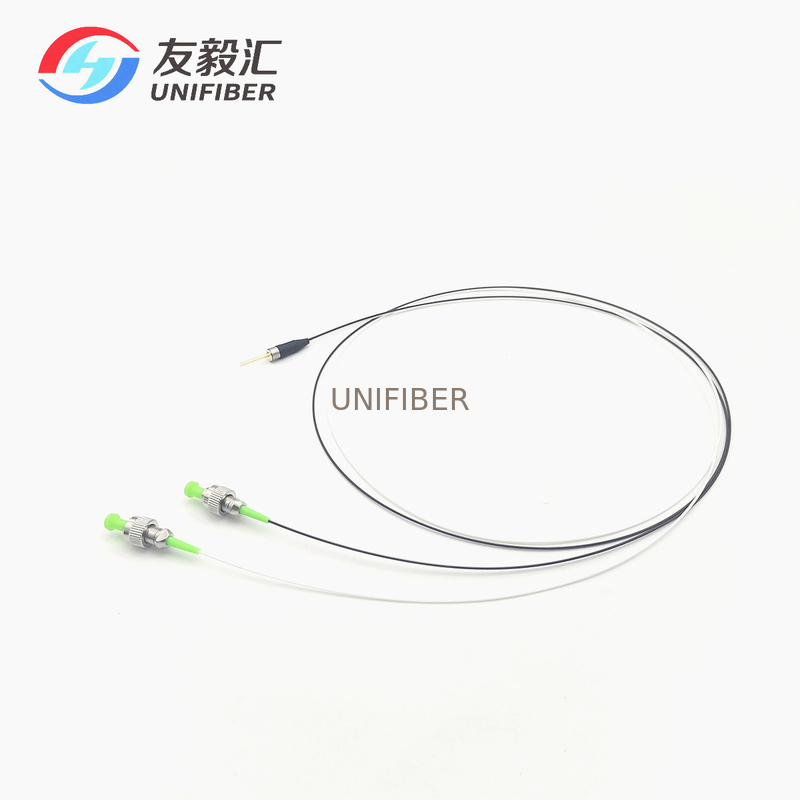

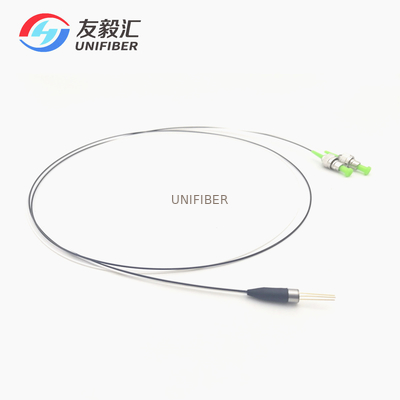

1550nm Integrated Optical Power Cable Tap PD Monitor FC APC

1550nm Integrated Optical Power Cable Tap PD Monitor FC APC
1550nm Integrated Optical Power Cable Tap PD Monitor FC APC 1550nm Integrated Optical Power Cable Tap PD Monitor FC APC 1550nm Integrated Optical Power Cable Tap PD Monitor FC APC

Large Image :  1550nm Integrated Optical Power Cable Tap PD Monitor FC APC

Product Details:
Place of Origin: China
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: Tap-PD Monitor
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Blister case
Delivery Time: 3~5 days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Product: Mini Integrated Optical Power Tap-PD Monitor FC/APC Wavelength: 1310nm 1550nm
Tap Ratio: 1%,2%,5% Pigtail: 900um Loose Tube
Connector: FC/APC Application: Monitoring/Optical Network Switch/Protection
High Light:

1550nm Integrated Optical Power Cable

,

FC APC Optical Power Cable

,

Tap PD Monitor Fiber Optical Cable

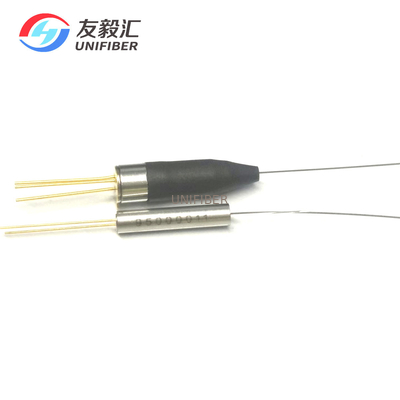

1310nm 1550nm Mini Integrated Optical Power Tap-PD Monitor is a small size optical power monitor that integrate a thin-film tap photo detector with pigtail, it have high linearity and high responsibility PIN photodiode and receive the 1510~1620nm wavelength.The products features: ultra compact and miniaturized structure, Low capacitance, low dark current and high optical return loss. They are widely used in channel power monitoring in EDFA system, OADM system, DWDM system, in-line optical network switching protection and so on. This device is mounted into a coaxial package integrated with a single mode fiberpigtail without connector, FC, SC, ST or LC connector can be selected also.



Features
- Low Insertion Loss & high isolation
- Customized tap ratio available
- Integrated devices, compact size
- Telcordia compliant
- RoHS compliant

Applications
- WDM channel monitoring
- Gain monitoring for amplifiers
- Optical network switch/protection
- monitoring


Specification

Parameter   Specification Unit
Operating Wavelength   C/L band
Tap Ratio   1% 2% 5%
Maximum Input Power   25 22 18 dBm
Responsivity   7~15 14~26 40~60 mA/W
Insertion Loss Max 0.5 0.6 0.7 dB
Wavelength Dependent Loss Max 0.3 0.3 0.3 dB
Temperature Dependent Loss Max 0.3 0.3 0.3 dB
Return Loss Min 45 45 45 dB
Polarization Dependent Loss Max 0.1 0.1 0.1 dB
Dark Current (at 25°C) Max 1 1 1 nA
Reverse Voltage Max 20 (Typ 5) V
Operating Temperature Range   0~+70 °C
Storage Temperature Range   -40~+85 °C
Package Dimension (L* )   17*3.2 mm
TPD Standard/Mini Size Tap Ratio Fiber Type Connector Type
  M: Mini size 01: 1% 1: 250μm bare fiber 0: Without connector
    02: 2% 2: 900μm tight buffer fiber 1: FC/PC 2: FC/UPC
3: FC/APC
    05: 5%   4: SC/PC 5: SC/UPC
6: SC/APC
        7: ST 8: LC 9: MU
X: Customized
