Product Details:
Payment & Shipping Terms:
|
| Product: | SC APC Ribbon Fan-out Fiber Optic Pigtail | Connector: | SC/APC |
|---|---|---|---|
| Fiber: | Single Mode G657A2 | Fiber Type: | Ribbon Fiber |
| Length: | 1m | Fiber Counts: | 4/6/8/12 Fiber |
| Highlight: | G657A2 Fiber Optic Pigtail,SC APC Fiber Optic Pigtail,12C Single Mode Fiber Pigtail |
||

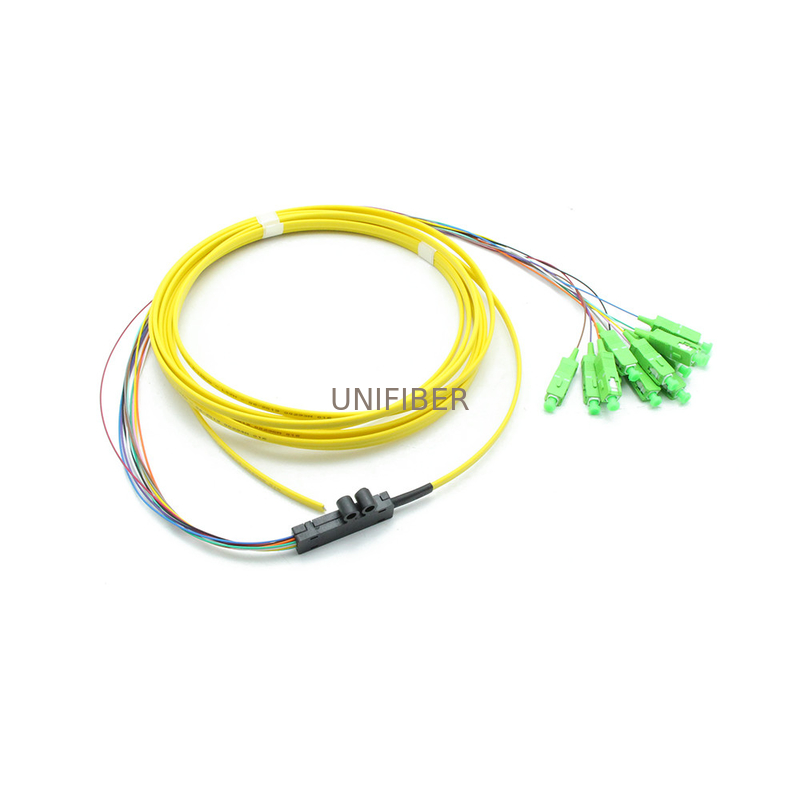

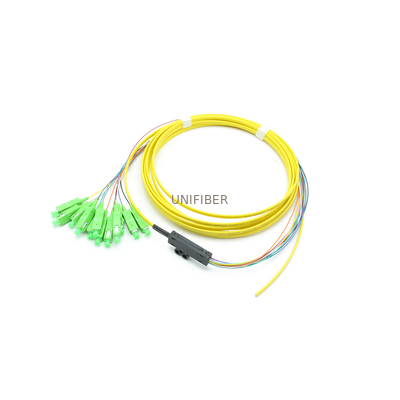

12F Ribbon Fan-out Fiber Optic Pigtail is a multi-fibers pigtail which made by Ribbon cable. The ribbon fiber fanout via a 1x12 fanout kit. The fanout cable can be 900um or 2.0mm cable.
Feature:
Low insertion loss
High resistance of corrosive
Strong interchanging capability
High return loss
UL standard accessories comply with UL94V-O and ROHS standard
Colors identify
Application:
CATV
Metro
Active device termination
Test equipment
Telecommunication networks
Local Area Networks (LANs)
Data processing networks
Premise installations
Wide Area Networks (WANs)
Industrial, medical & military
| Fiber count | 4/6/8/12 | Fiber Mode | 9/125μm |
| Connector Type1 | SC/APC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 0.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥60dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
