Product: | 2x2B Mechanical Optical Switch | Wavelength: | 1310/1550nm |
---|---|---|---|
Relay Type: | Latching Or Non-Latching | Operating Voltage: | 3.0 Or 5.0 V |
Switching Time:: | ≤8ms | Application: | Optical Protection |
High Light: | 2x2B Mechanical Optical Switch,Non Latching Mechanical Optical Switch,Optical Protection fiber optic switch |

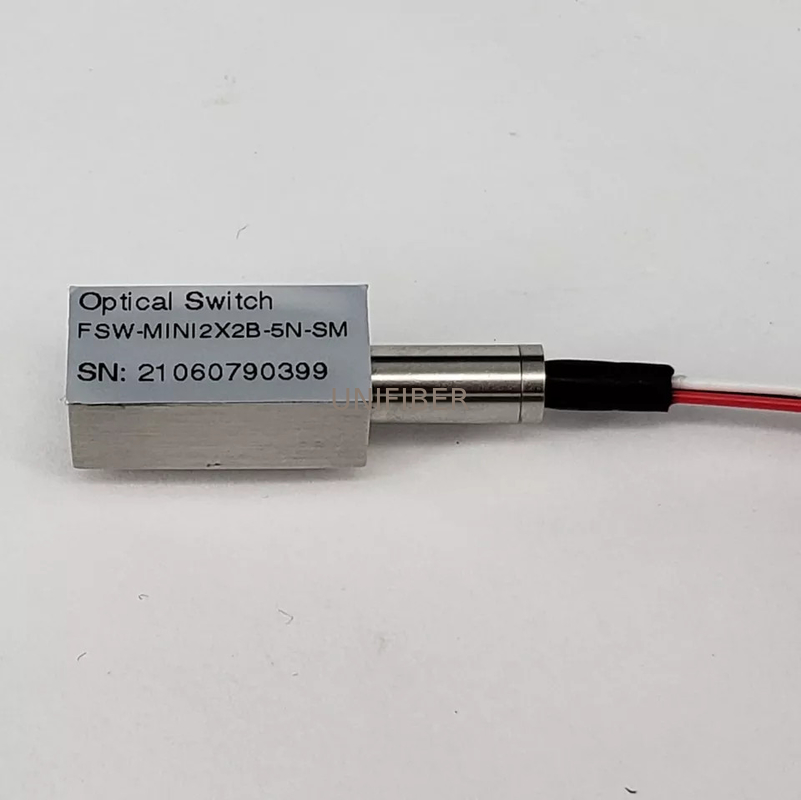

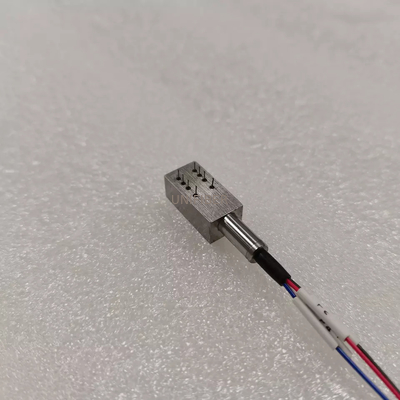

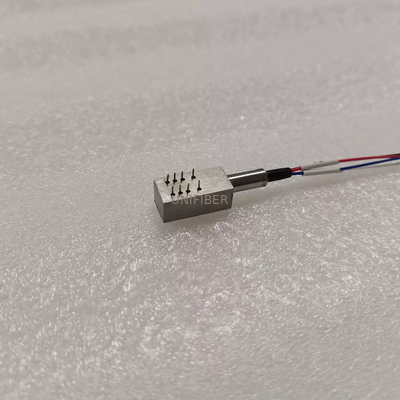

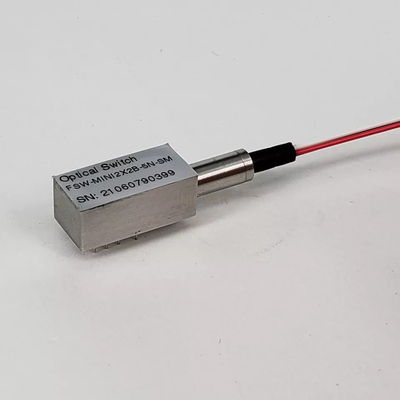

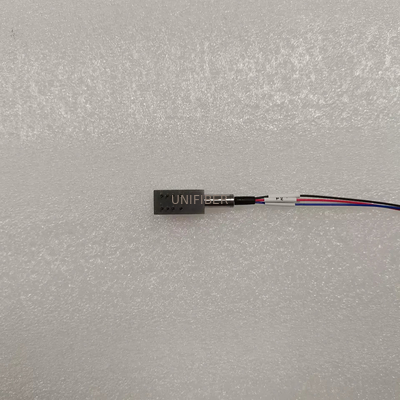

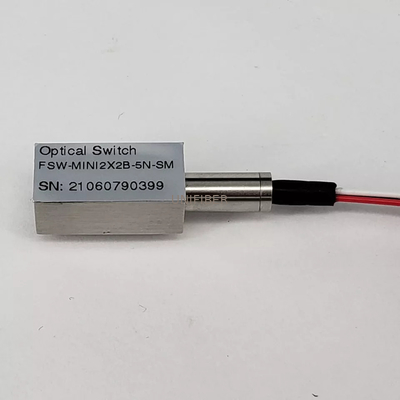

The 2x2 fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pen ding opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.
Fetures
Mini Size
Fast Switching Time
Low Insertion
High Reliability and Stability
Applications
PON NetworkProtection
Networking Monitoring
Instrumentation
Compliance
Telcordia GR-1221
Telcordia GR-1073
