Product Details:
Payment & Shipping Terms:
|
| Product: | Single Mode Sc Apc Fanout Pigtail | Cores: | 12 Cores |
|---|---|---|---|
| Fiber Type: | Corning G657A2 Fiber | Jacket Material: | LSZH |
| Color: | Yellow | Fanout Length: | 0.5 Meter |
| Connector: | Sc Apc | Application: | Fiber Splicing |
| High Light: | 1.5m SC APC Pigtail,OS2 SC APC Pigtail,Single Mode SC APC Pigtail |
||
Description of 12 core single mode os2 sc apc fanout pigtail
Single mode fiber optic pigtail made with high-precision zirconia ferrules and corning G.657.A2 bend insensitive fiber to guarantee reliable high density splicing, unifiber to custom make no matter single mode pigtail or multimode pigtail, they are come with simplex pigtail, 4 core 6 core 8 core 12 core fanout optical fiber pigtail.
Specification
| Item name | 12 core single mode os2 sc apc fanout pigtail |
| Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3 dB |
|
Return Loss
|
≥60 dB |
| Fiber Count | 12 core |
| Cable length | 1.5m 2.5m or Custom |
| Packing: | 1 pcs /bag |
Features
PVC or LSZH Flame-retardant pigtail fiber optic cable
Color coded 0.9mm tight-buffered fanout pigtails
With lc or sc terminated for UPC or APC polished
1m 1.5m 2.5m or other custom length avaliable
100% Optical Factory Testing Guarantees The High Performance on The Insertion Loss and Returns Loss
Custom brand or package supportable
Application
High Density Splicing and Patching
Fiber Cabling System
Telecommunication
Fiber to the home solutions
Fiber Optic Networks
Our Advantages
With huge capacity up to 10000pcs/day and fast delivery
Over 10-years OEM experience to offer one-stop service
Prompty response to any customer's request
Strong technical and QA team to guarantee the reliable quality

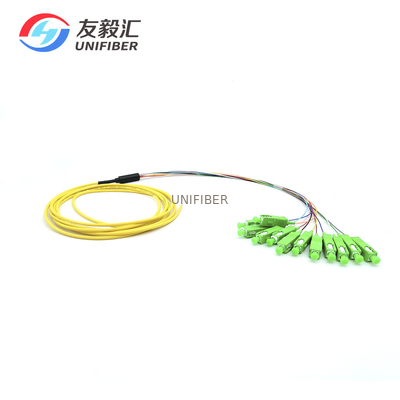

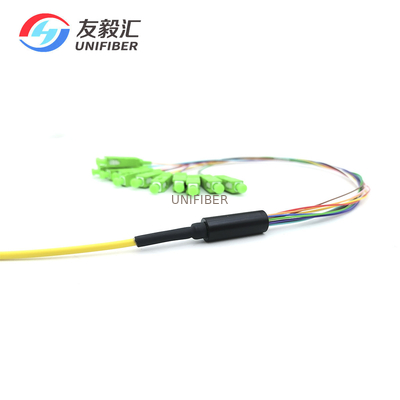

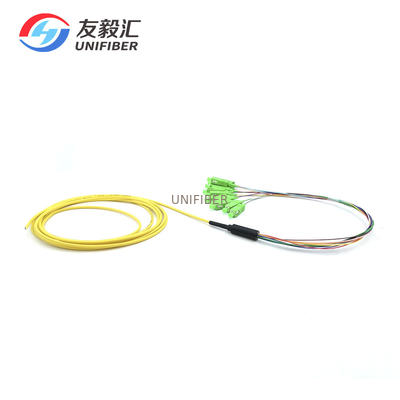

Picture of 12 core single mode sc apc fanout fiber optic pigtail
