Product Details:
Payment & Shipping Terms:
|
| Product: | MPO Ribbon Fiber Pigtail | Connector: | MPO Male |
|---|---|---|---|
| Fiber Counts: | 12 Ribbon Fiber | Length: | 0.5m |
| Fiber Type: | Singlemode | Application: | Data Center Solutions |
| Highlight: | MPO Ribbon Fiber Pigtail,Ribbon Fiber Pigtail 0.5m,Singlemode Ribbon Fiber Pigtail |
||
Description of 8/12 core MPO Ribbon Fiber Pigtail 0.5m Male/Female Connector
MPO pigtail or MTP ribbon pigtail/patch cord are made with bare ribbon cable or LSZH/OFNP ribbon cable, It is easy fiber splicing or data center installation. Unifiber also supply other MPO/MTP cable assemblies, like MPO trunk cable, MPO to LC breakout cable, MPO to LC fanout patch cable, MT to MT patch cord.
Features
8/12/24 fiber for options
With different polarity of Type A,Type B and Type C
With Standard Loss or Elite / Low Loss for options
With pins male or w/o pins female connectors for options
With different cable jacket of OFNR, LSZH, OFNP
Different types of fiber available in singlemode (G652D, G657A1, G657A2), multimode (OM1, OM2, OM3, OM4)
APPLICATION
fiber optic splicing
Data center installation.
Ethernet
LAN
Specification
| MPO MTP Fiber Patch Cord | ||||
| Type | Single mode(APC polish) | Multi mode(PC polish) | ||
| Fiber count | 8,12,24,etc. | 8,12,24,etc. | ||
| Fiber type | G652D,G657A1 etc. | OM1,OM2,OM3,OM4 etc. | ||
| Maximum Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
| ≤0.75dB | ≤0.35dB | ≤0.75dB | ≤0.35dB | |
| Return Loss | ≥55dB | N/A | ||
| Working Temperature | -40℃～80℃ | -40℃～80℃ | ||
| Test Wavelength | 1310nm | 850nm | ||
| Generic Connector Termination | ||||
| Type | Single mode | Multimode | ||
| UPC | APC | PC | ||
| Max,Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | |
| Typical Insertion Loss | 0.2dB | 0.2dB | 0.2dB | |
| Return Loss | ≥55dB | ≥65dB | ≥25dB | |
| Working Temperature | -40℃～80℃ | |||
| Test Wavelength | 1310nm | 850nm | ||
| All MM SM shall be tested for IL | ||||

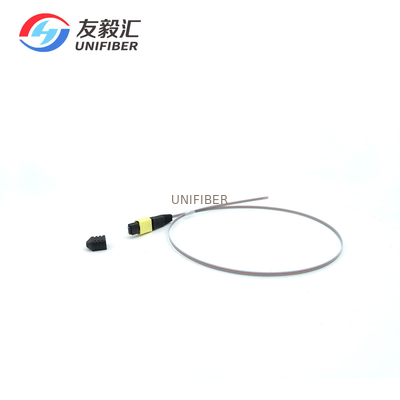

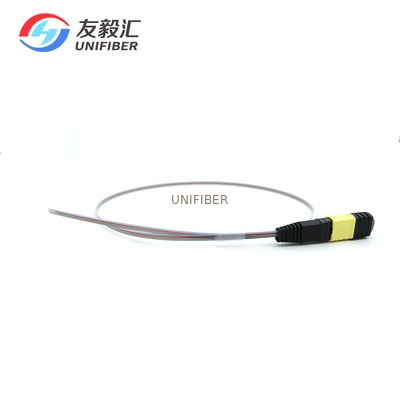

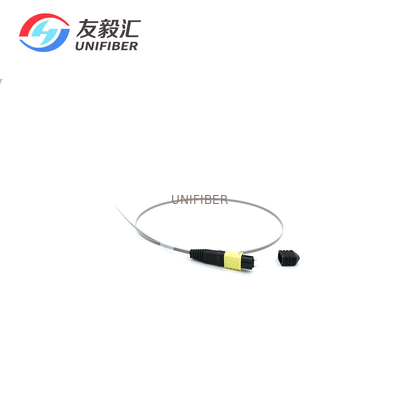

Pictures of 12 core MPO Male Female Ribbon Fiber Pigtail
