Product Details:
Payment & Shipping Terms:
|
| Product: | Single Mode Fanout Fibre Optic Pigtails | Fiber Counts: | 12 Fiber |
|---|---|---|---|
| Fiber Type: | G657a2 | Length: | 1.5m |
| Jacket: | LSZH Or OFNR | Connector: | LC/APC |
| Highlight: | G657A2 Fiber Optic Pigtail,LC APC Fiber Optic Pigtail,Bending Insensitive Fiber Optic Pigtail |
||
Description of bending insensitive single mode g657a2 LC/APC fanout fibre optic pigtails 1.5m 12 core
Unifiber use g657a1 or g657a2 bend insensitive 12 color-coded fanout tight buffer fiber to build custom 4/6/8/12 strands fibre optic pigtails, with 1m,1.5m or 2.5m length avaliable, connectors usually to be LC/APC, LC/UPC, SC/UPC,SC/APC or specified.
Features
900um 12 color-coded tight-buffered coating
High performance on Insertion Loss and Returns Loss
Good for Fusion or Mechanical Splicing
Any connector or length customized
Application
High Density Splicing
Fiber Cabling System
Fiber Patching Solution
Telecommunication
Specification
| Product name | Single mode g657a2 LC/APC fanout fibre optic pigtails |
| Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB |
| Fiber Count | 12 core |
| Connector | LC/APC |
| Cable length | 1.5m 2.5m or Custom |
| Packing: | 1 pcs /bag |

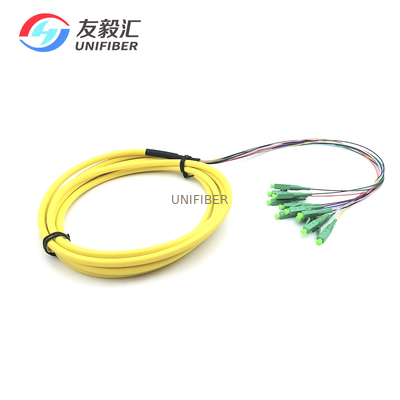

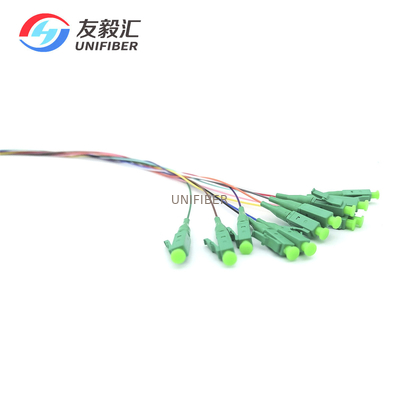

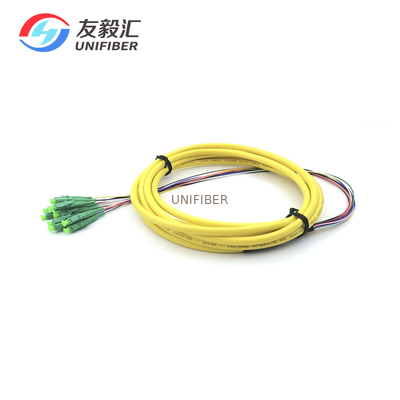

Picture of Single mode g657a2 LC/APC fanout fibre optic pigtails
