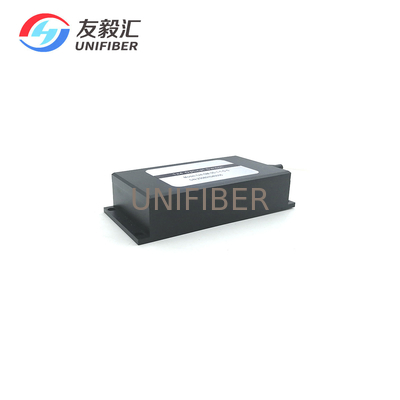

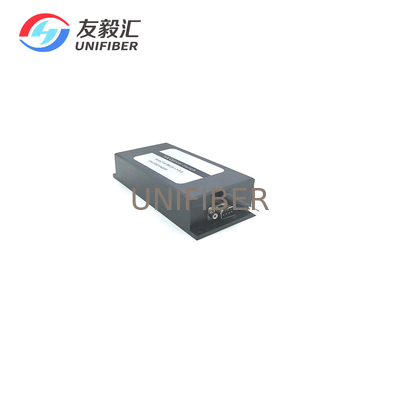

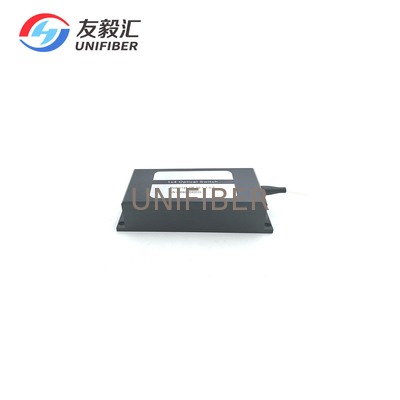

1x4 Single Mode 1310/1550nm Mechanical Optical Fiber Switch, 5V, Non-Latching, Serial Interface

Large Image : 1x4 Single Mode 1310/1550nm Mechanical Optical Fiber Switch, 5V, Non-Latching, Serial Interface

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	1x4 Mechanical Fiber Optic Switch

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Product:	1x4 Single Mode Optical Switch	Wavelength:	1310/1550nm
Voltage:	5V	Control Model:	Non-Latching
Pigtail Type:	900un Loose Tube	Connector:	Specified

Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The Latching/Non-Latching Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.

Features

Highly Stable & Reliable
Short switching time
Compact design, Miniature size
Low Insertion Loss
Wide operating wavelength Range
Fail-Safe Latching and Non-latching
Single mode or Multimode optional

Application

System Monitor
Configurable OADM
Metropolitan Area Network
R&D in Laboratory

Specification

Parameter	1XN Mechanical Optical Fiber Switch
Insertion Loss(dB)	1＜N≤12	16＜N≤32	32＜N≤64	64＜N≤128
	Type:0.8 Max:1.0	Type:0.8 Max:1.0	Type:1.2 Max:1.5	Type:1.7 Max:2.0
Wavelength Range(nm)	850nm,1260~1620nm
Operating Wavelength(nm)	850/1310/1550/1625
WaveLength Dependent Loss(dB)	≤0.25
Channel Crosstalk(dB)	MM≥35 SM≥55
Return Loss(dB)	MM≥30 SM≥50
Polarization Dependent Loss(dB)	≤0.05
WaveLength Dependent Loss(dB)	≤0.25
Temperature Dependent Loss(dB)	≤0.25
Repeatability(dB)	≤±0.02
Power Supply(V)	5.0 or 12.0
Lifetime(time)	≥10^7
Switch Time(ms)	≤8
Transmission Power(mW)	≤500
Operating Temperature(℃)	-20~+70
Storage Temperature(℃)	-40~+85
Dimension(mm)	1＜N≤12(135×64×32)	12＜N≤16(184×78×36)	16＜N≤32(140×77.5×64)	31＜N≤88(184×156×66)
	88＜N≤128(184×220×66)	&nsbp;	&nsbp;	&nsbp;
