Product Details:
Payment & Shipping Terms:
|
| Product: | Single Mode Ribbon Fiber Pigtail | Fiber: | Single Mode G657A2 |
|---|---|---|---|
| Fiber Counts: | 4/6/8/12 Fiber | Connector: | SC/APC |
| Fiber Type: | Ribbon Fiber | Length: | 2.5m |

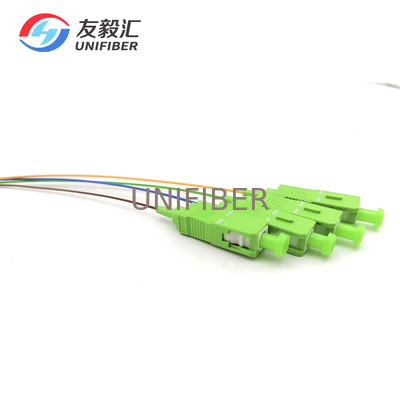

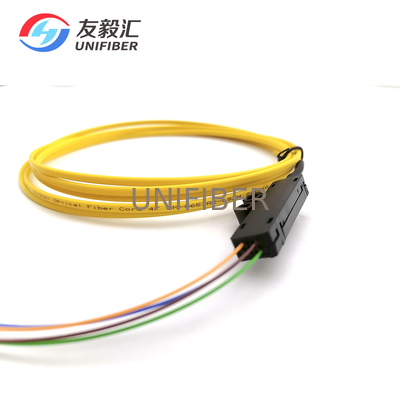

12 fiber Ribbon Fan-out Optical Pigtail is a multi-fibers pigtail which made by Ribbon cable. The ribbon fiber fanout via a 1x12 fanout kit. The fanout cable can be 900um or 2.0mm cable.
Application:
Telecommunication networks
Data processing networks
Local Area Networks (LANs)
Premise installations
Wide Area Networks (WANs)
Feature:
Low insertion loss
High return loss
Colors identify
4/6/8/12 fiber avaliable
SC/LC/FC/ST connector with UPC or APC polishing
G657A2 fiber with low bending performance
Specification
| Fiber count | 4/6/8/12 | Fiber Mode | 9/125μm |
| Connector Type1 | SC/APC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 0.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥60dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
