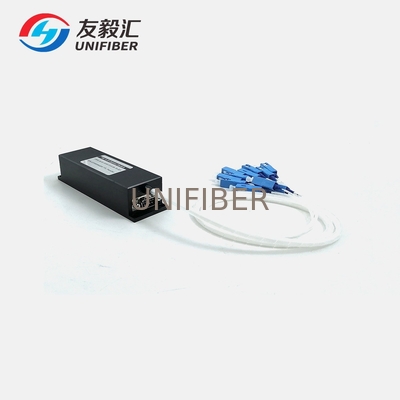

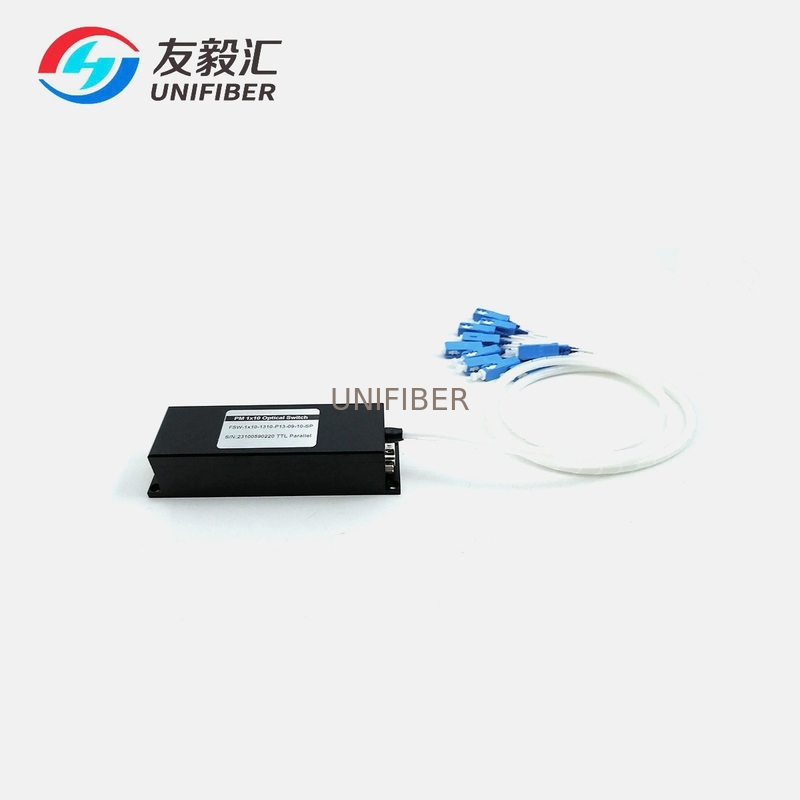

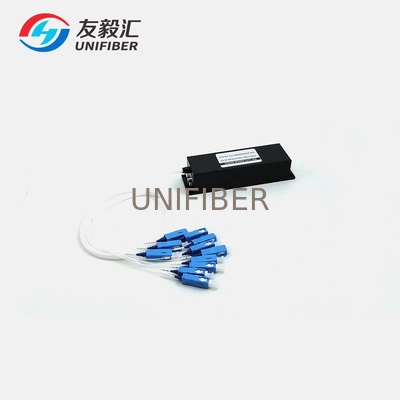

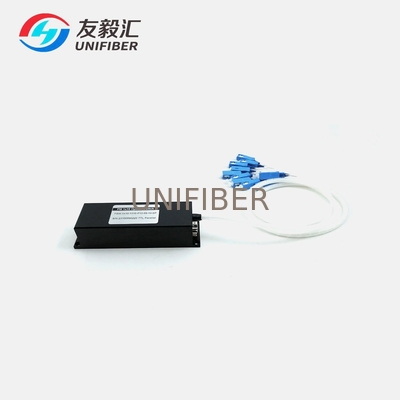

1x4 1x8 1x16 PM Mechanical Optical Switch 1310nm 1550nm SC/UPC

1x4 1x8 1x16 PM Mechanical Optical Switch 1310nm 1550nm SC/UPC
1x4 1x8 1x16 PM Mechanical Optical Switch 1310nm 1550nm SC/UPC 1x4 1x8 1x16 PM Mechanical Optical Switch 1310nm 1550nm SC/UPC 1x4 1x8 1x16 PM Mechanical Optical Switch 1310nm 1550nm SC/UPC

Large Image :  1x4 1x8 1x16 PM Mechanical Optical Switch 1310nm 1550nm SC/UPC

Product Details:
Place of Origin: CHINA
Brand Name: Unifiber or OEM
Certification: ROHS
Model Number: 1xN PM Mechanical Optical Switch
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5~8days
Payment Terms: L/C, T/T
Supply Ability: 1000
Contact Now
Detailed Product Description
Product: PM Mechanical Optical Switch Channels: 1~N Channels (N≤64)
Wavelength: 1310/1550 Fiber Type: PM 1310 PM 1550
Output Fiber: 900um Connector: SC/UPC Or Specified

Features

Compact size
Fast Switching Time
High stability and reliability
RoHS compliance

Appliation
Optical network protection
Configuration and restorationProtection
Network Monitorin
Transmission equipment protection

Specification
Parameters
Unit
FSW 1×N-PM
Working Wavelength
nm
1310/1550
Insertion Loss
dB
≤1.0 (A Grade), ≤0.8 (P Grade)
Extinction ratio
dB
≥18
WDL
dB
≤0.25
TDL
dB
≤0.2
PDL
dB
≤0.05
Return Loss
dB
≥50
Crosstalk
dB
≥55
Repeatability
dB
≤±0.05(within 4 hours), ≤±0.1(within 24 hours)
Switching Time
ms
≤10 (adjacent channel)
Durability
times
≥109
Operating Voltage
V
5
Input Optical Power
mW
≤500
Operating Temp.
°C
-5 ~ +70
Storage Temp.
°C
-40 ~ +85
Operating humidity
%
5 ~ 95
Dimension
2≤N≤16
mm
135×40×32 or 135×60×35 or 120×40×32
17≤N≤32
120×50×50 or 114×110×32 or 150×76×60
33≤N≤64
150×90×78



1x4 1x8 1x16 PM Mechanical Optical Switch 1310nm 1550nm SC/UPC 0
