LC/PC OM3 OM4 Multimode Fiber Optic Pigtail 0.9mm Tight Buffer Aqua LSZH 1m

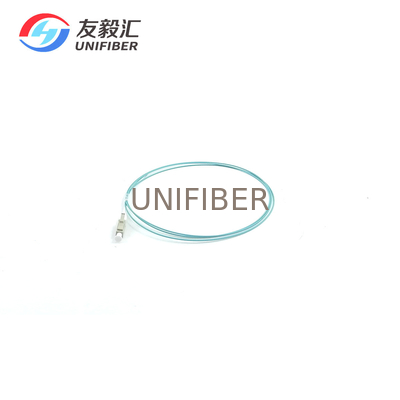

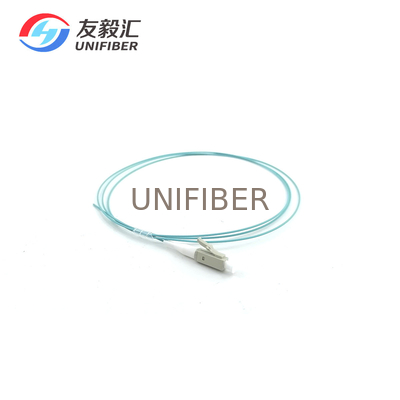

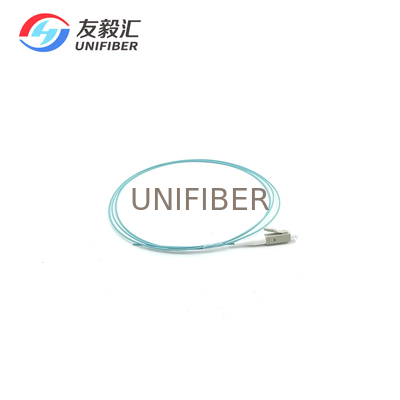

Large Image : LC/PC OM3 OM4 Multimode Fiber Optic Pigtail 0.9mm Tight Buffer Aqua LSZH 1m

Product Details:

Place of Origin:	CHINA
Brand Name:	Unifiber or OEM
Certification:	ROHS
Model Number:	LC/PC Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Product:	Fiber Optic LC Pigtails	Fiber Type:	OM3 Or OM4
Connector:	LC/PC	Jacket:	LSZH Aqua
Length:	1m	OEM Brand:	Support

Unifiber custom kinds of fiber optic pigtails with LC SC FC SC connectors, it usually come with 900um tight buffer for single mode or multimode fiber, we can also build 4/6/8/12 core ribbon fiber pigtails.

Features:

Low insertion loss

High reflection loss

Customized length

High bend insensitive fiber

Applicaiton

Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network

Specification

Parameter	Singlemode Fiber			Multimode Fiber
Parameter	PC	UPC	APC	PC
Insertion Loss(dB)	≤0.3	≤0.2	≤0.3	≤0.3
Return Loss(dB)	≥45	≥50	≥60	≥20
Exchangeability(dB)	≤0.2
Plug-pull life(times)	＞1000
Operating temperature(℃)	-40~+75
Storage temperature(℃)	-45~+80
Fiber model	φ0.9mm, φ2.0mm, φ3.0mm
